Tile Levelling System
Stocked in: NSW, QLD, VIC, and WA
Tried and tested system
High quality components
Durable, reusable wedges
Advanced Spacer Clip design, that separates professionally
Fast, Easy, Quick, Clean Break and an Even Finish!
The Nex Gen Tile Levelling System is designed to reduce the lippage that can be experienced when laying tiles, allowing for faster more even work.

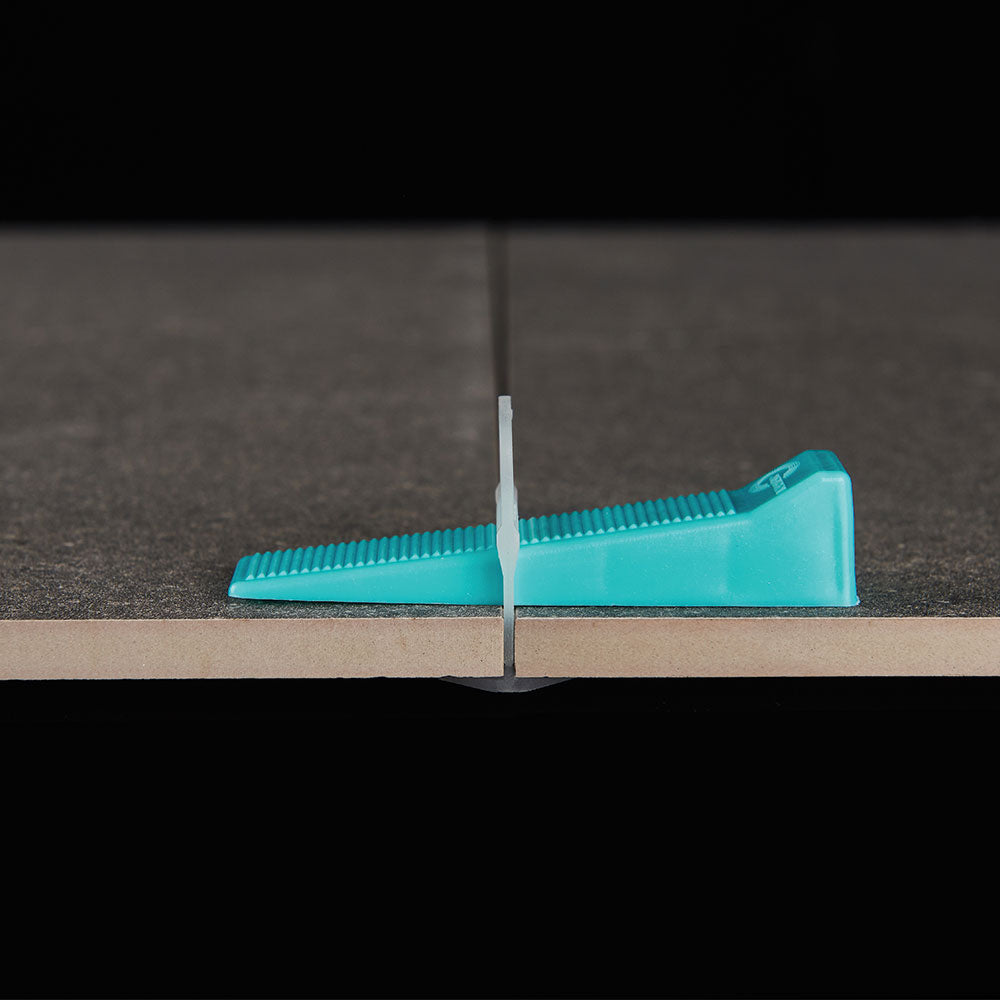

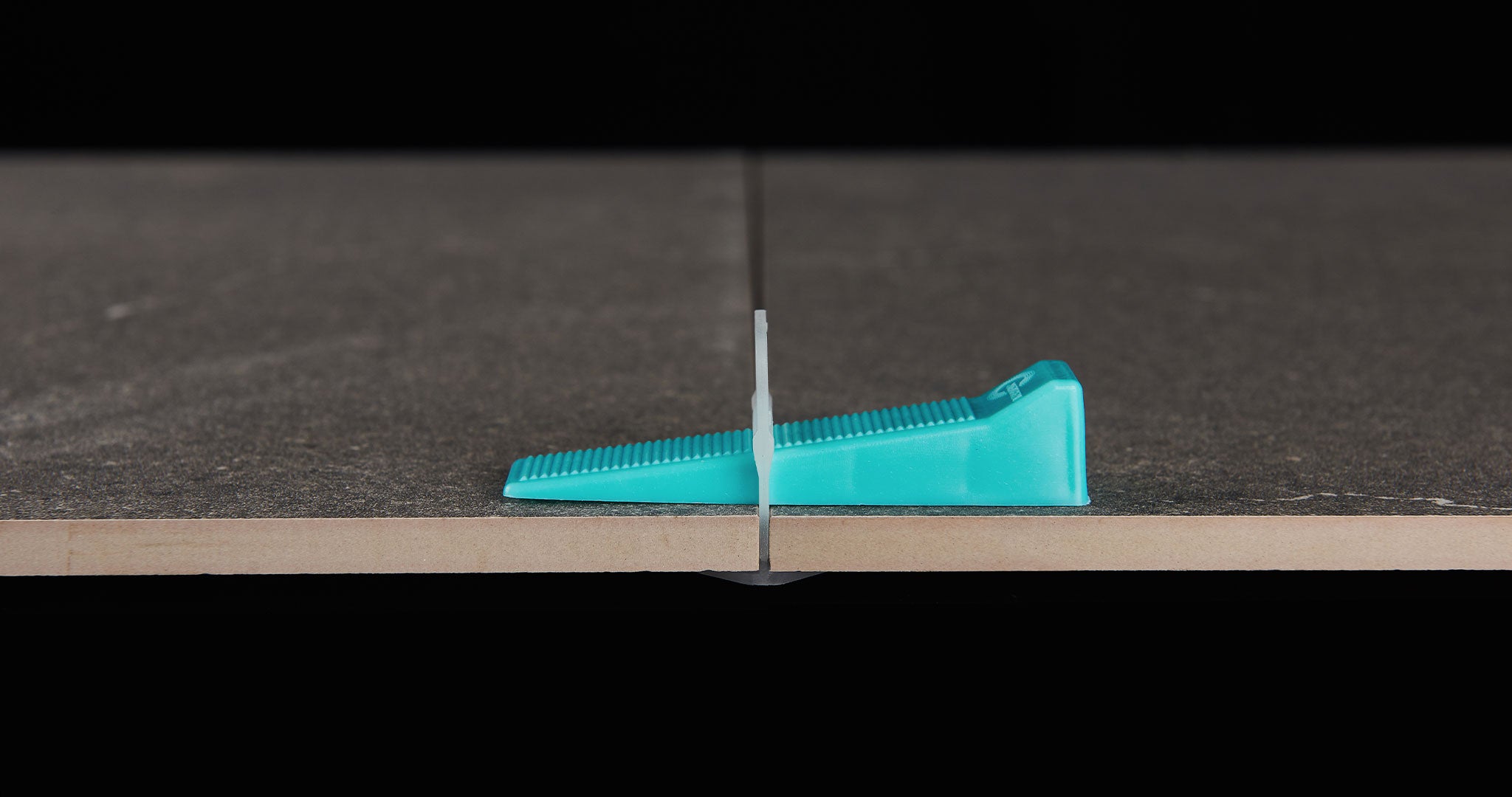

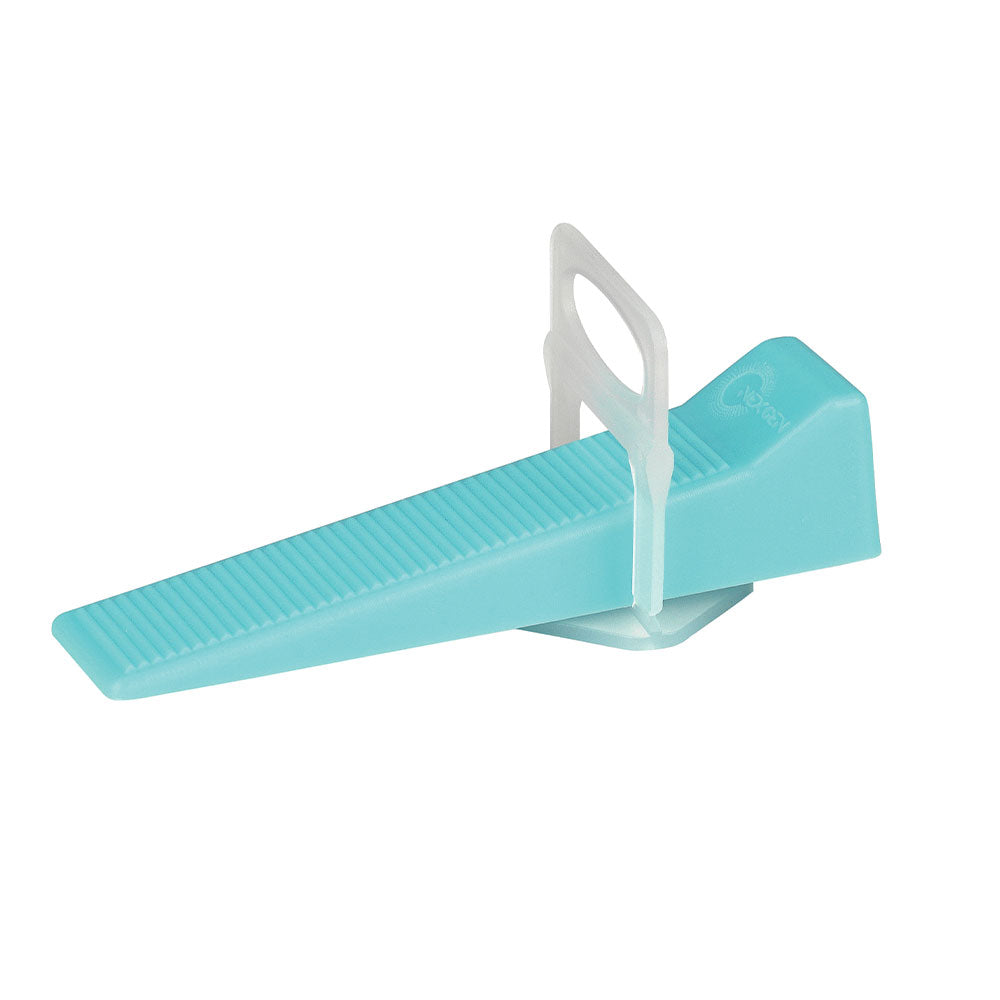

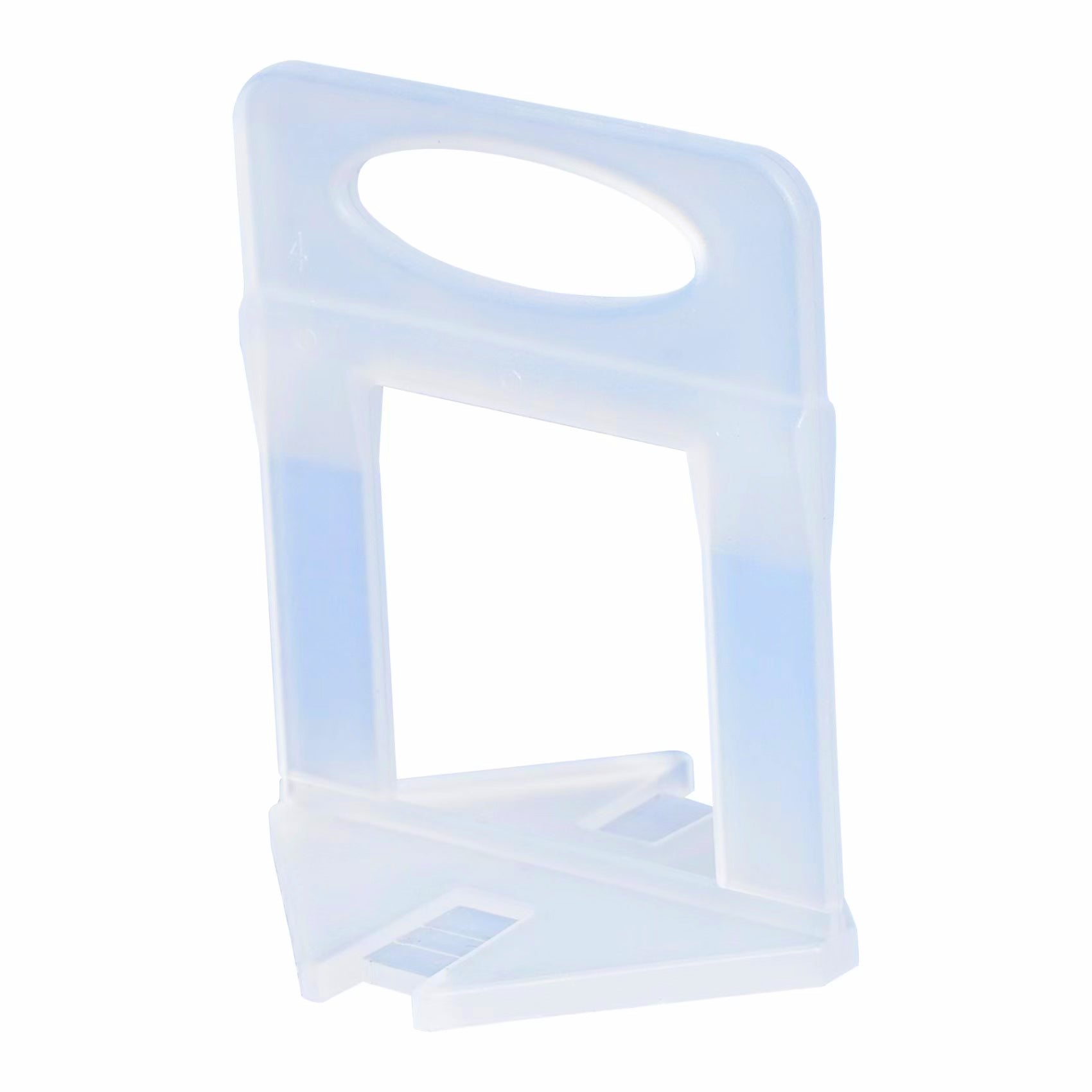

The two-part system consisting of a Spacer Clip and Wedge are fastened by a Tensioning Tool, which aligns tiles from 3-12mm in thickness, ensuring even, lippage free grout joints, in both wall and floor tiling.
PACKAGING
Spacer Clips: 30x100 pc bags/box
Wedges: 20x100 pc bags/box
Availability
| Colour | Size | SmoothGrip | Slip Rating |
|---|---|---|---|
| Clips | 1.0mm (for 3mm - 12mm tile) | - | - |
| 1.5mm (for 3mm - 12mm tile) | - | - | |
| 1.5mm (for 3mm - 12mm tile) (500 bag) | - | - | |
| 1.5mm (for 11mm - 20mm tile) | - | - | |
| 2.0mm (for 3mm - 12mm tile) | - | - | |
| 3.0mm (for 3mm - 12mm tile) | - | - | |

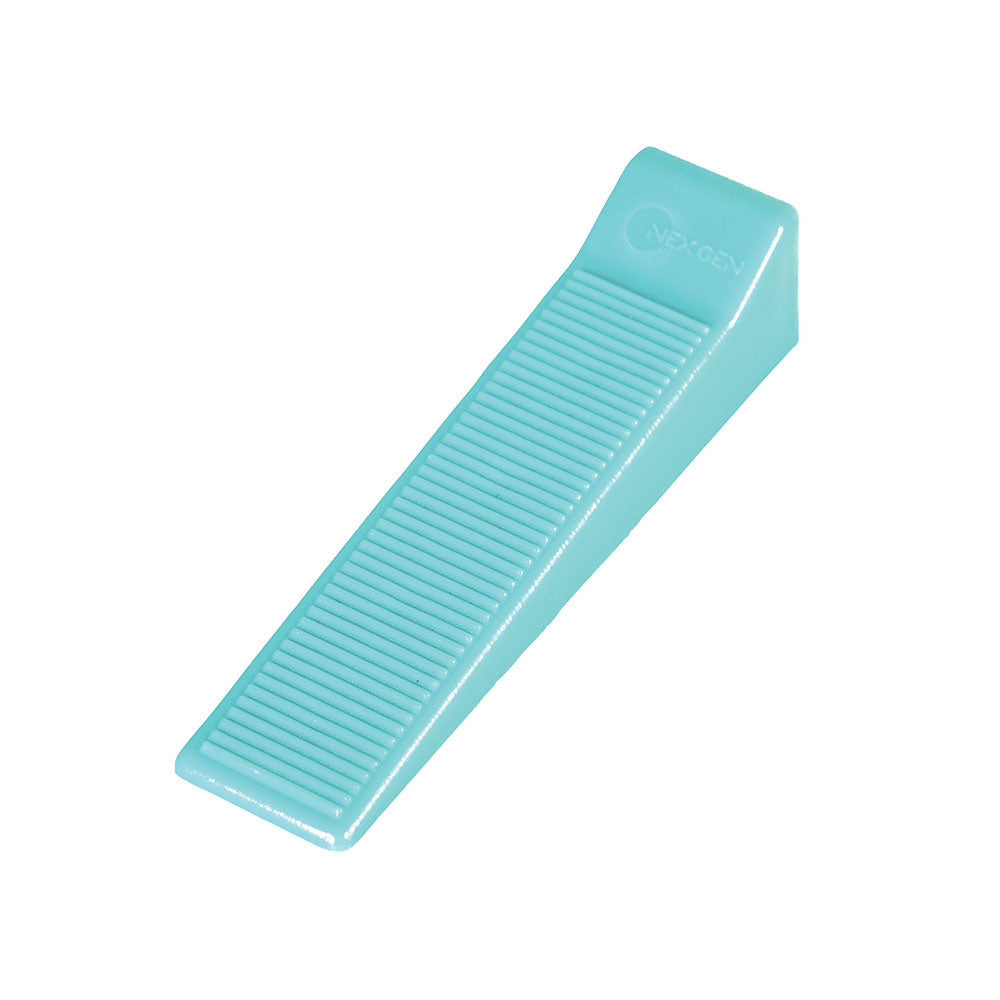

| Wedges | One Size | - | - |
| Tensioning Tool | One Size | - | - |
Not all sizes, colours and finishes are available in each state. Please contact your Sales Representative, Local Office, or check on the Stoneworld Portal for availability, full terms and conditions of sale and further information on our products. See below for more information*.

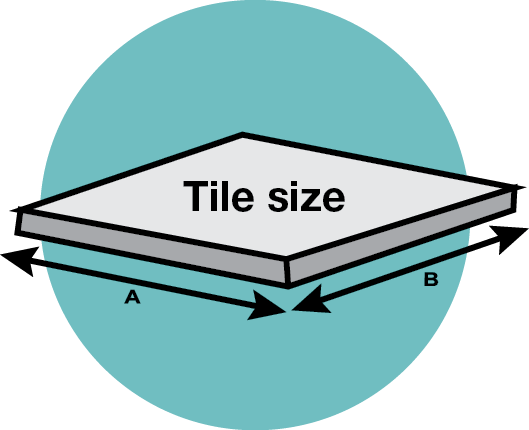

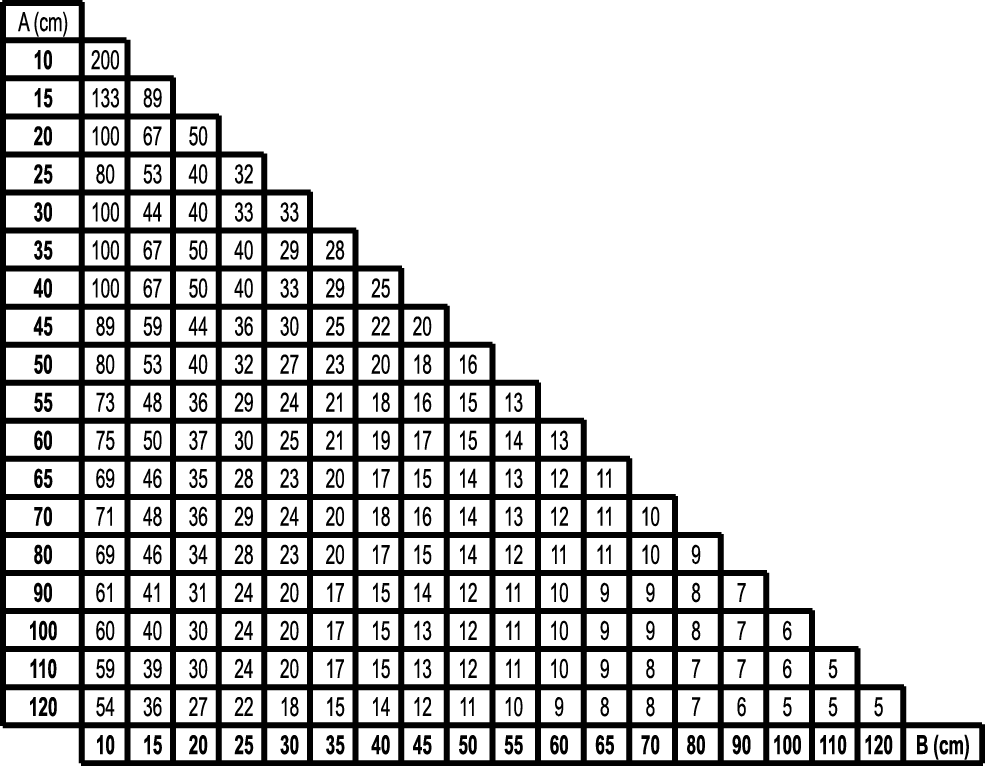

How many clips do you need per m2 area?
Simply multiply the length and the width of the tile to find out the number of levelling clip you need to lay a m2 of that tile.
Usage Guide
Step 1
Ensure that the floor surface is levelled or screeded appropriately. Levelling Clips cannot straighten tiles on an uneven floor.

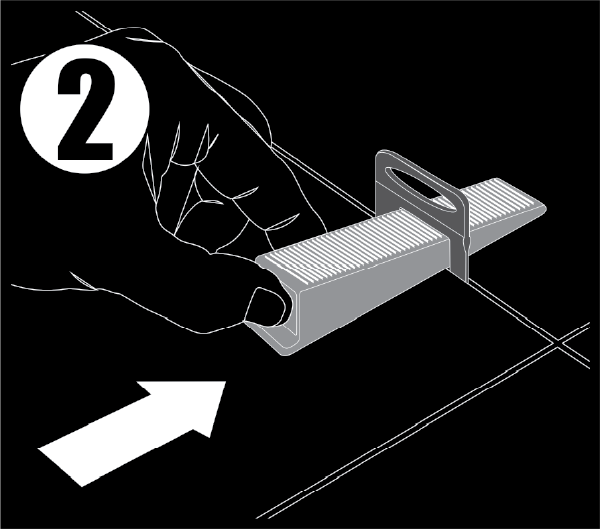

Step 2

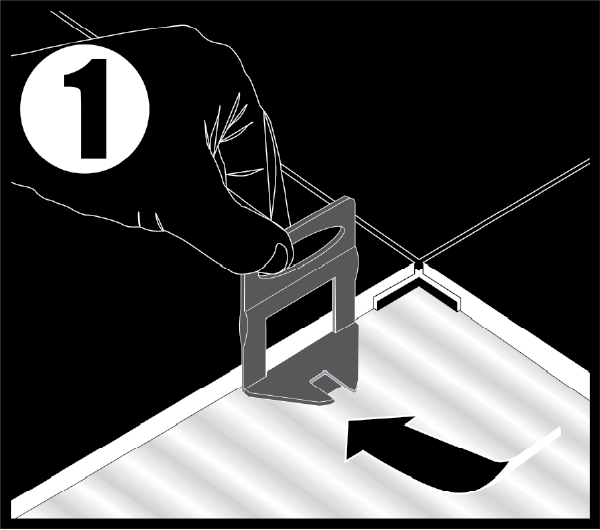

Apply correct amount of glue with a notched trowel to the tile and floor before laying, then position the Spacer Clips to ensure an even grout line. Position to best effect where lippage occurs.
Step 3

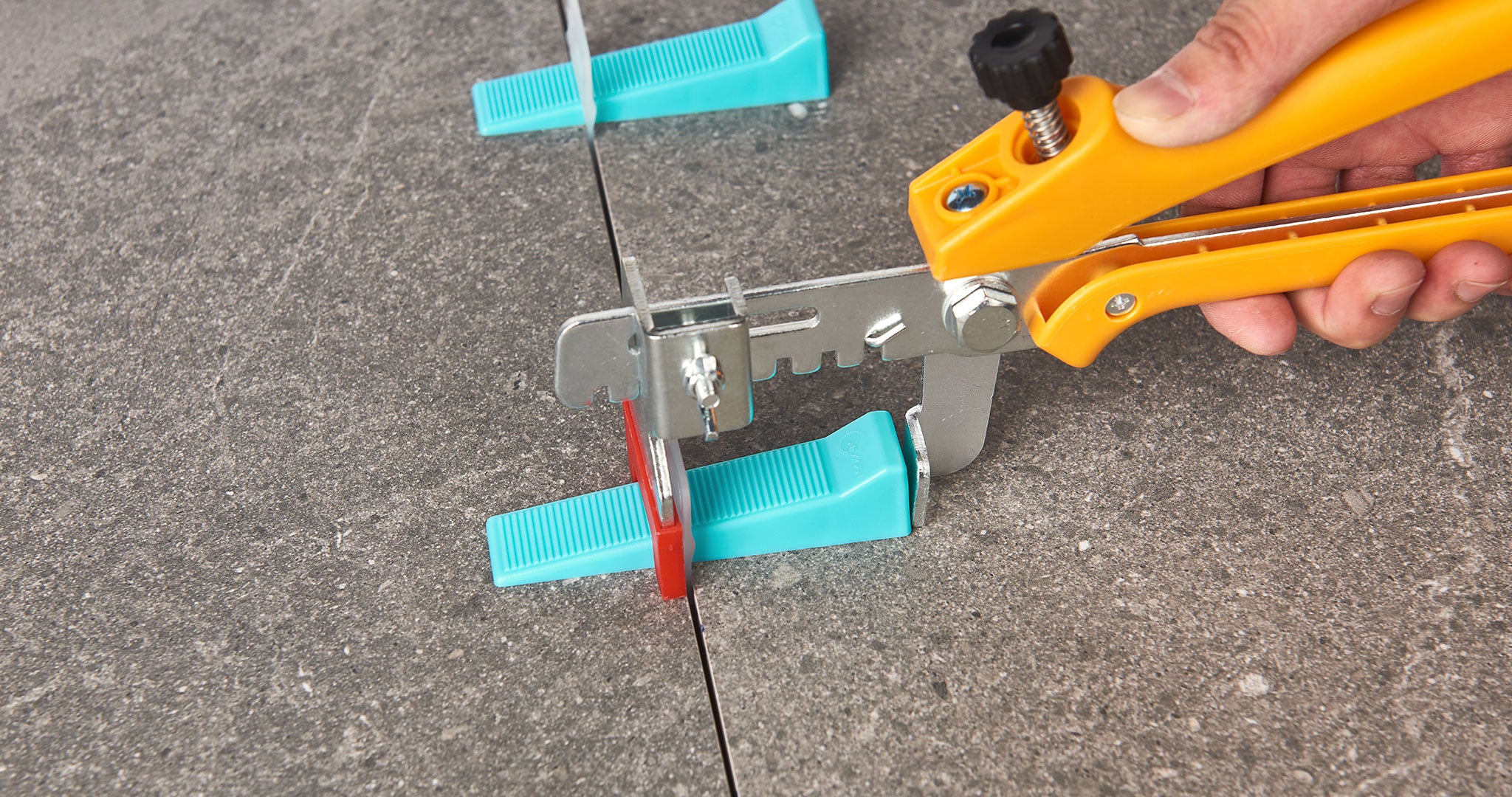

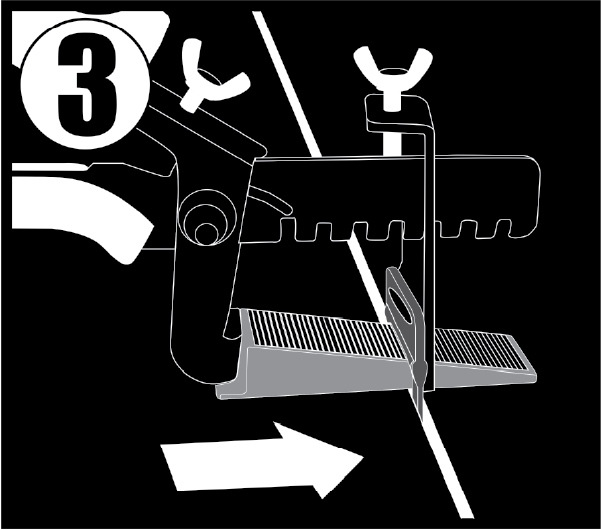

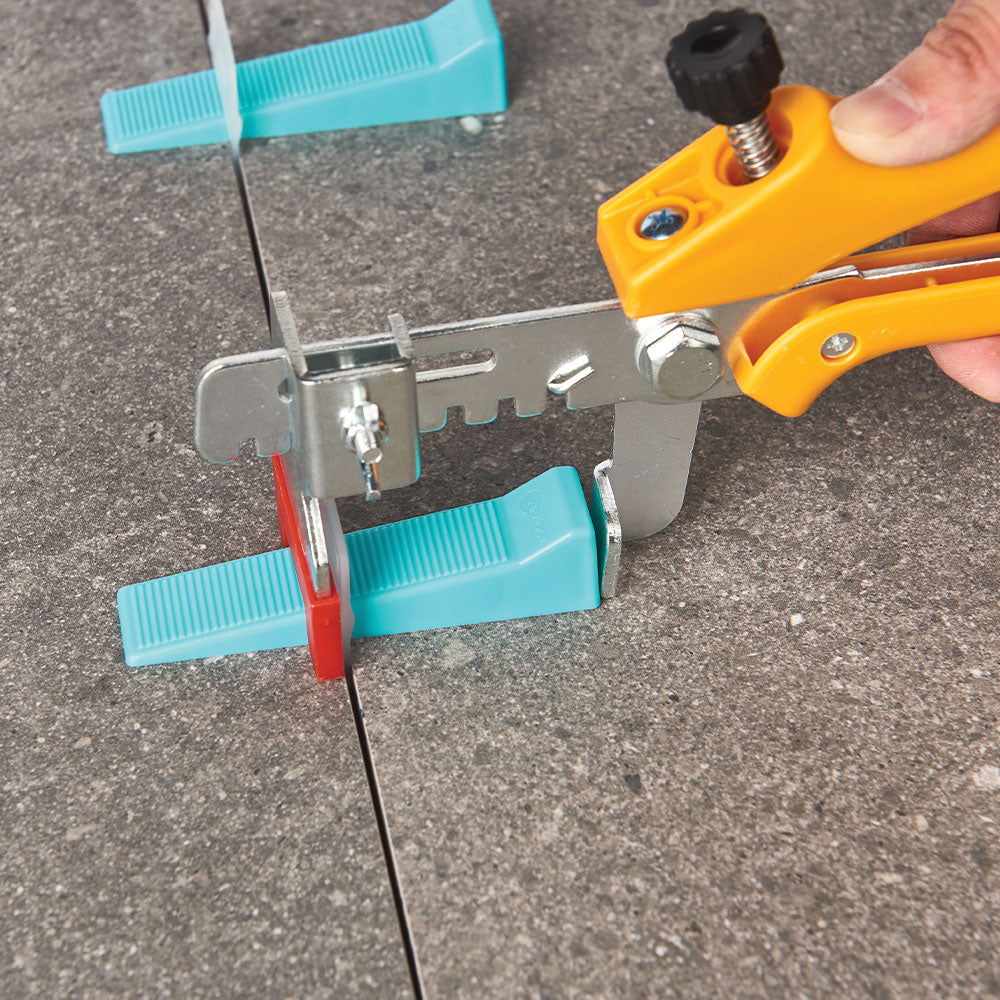

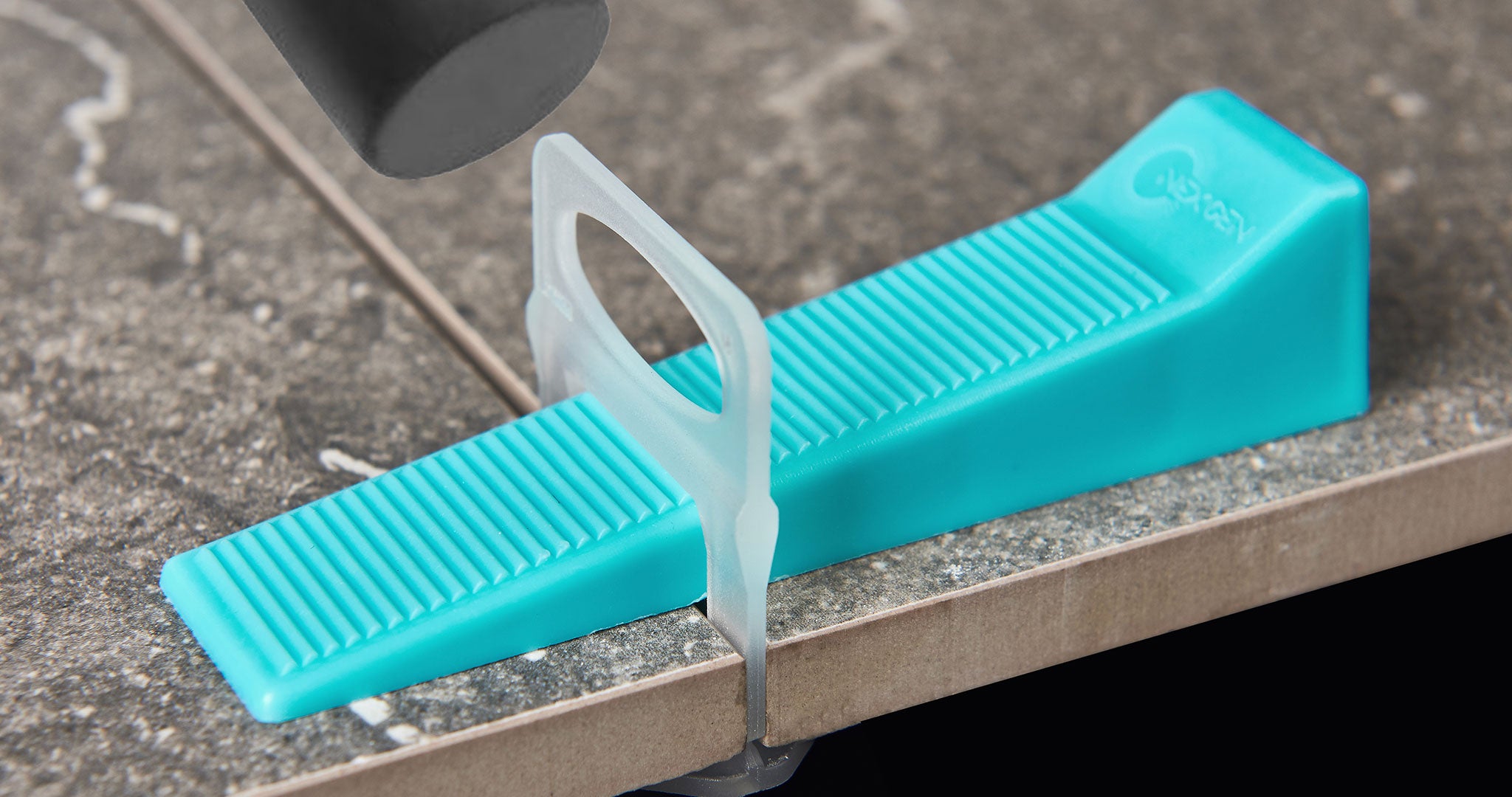

Slide in the Wedge into the space provided in the Spacer Clip and use Tensioning Tool to tighten. The pressure of the clip across the two surfaces, levels the tiles.

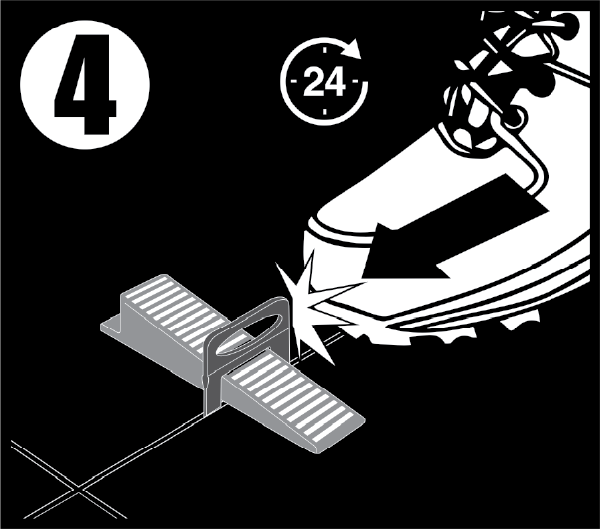

Step 4
Once the tile glue has set, remove the wedge and the top of the spacer, which break off under the tile. The Wedges can be re-used a number of times, if undamaged.
